Stellar Series™ Laryngoscope Blades (Miller Profile)

Easy To Use Blades Designed For Efficiency

The Stellar Series™ fibre-optic laryngoscope blades feature a low shoulder profile for better visualization and easier intubation of patients. The large (4.2mm) integrated fibre-optic bundle maximizes light transmission reducing crevices and hard-to-clean areas for better removal of bioburden. The matte finish reduces blade-glare and increases ease of use.

Miller Profile Blades

The Stellar Series Miller Profile laryngoscope blades deliver an efficient and easy to use straight blade option. Originally developed by Dr. Robert Miller for pediatric use, their matte finish makes for easy clean up and use and are available in a range of sizes.

Stellar Series™ Laryngoscope Blades Benefits:
  • Low shoulder profile for better visualization and easier intubation of patients
  • Integrated fiber optic bundle to reduce crevices and hard-to-clean areas for better removal of bioburden
  • No disassembly required for reprocessing
  • Matte finish reduces glare
  • Large 4.2mm fiber-optic bundle maximizes light transmission
  • Glass-fiber bundle is designed for 1000’s of reprocessing cycles
  • SS 304 stainless steel construction
  • Conforms to ISO 7376-3 standard (“green” standard)
  • 5 year warranty
Additional Information

Product Brochure
Technical Documents
Where to buy

Product List

Product Code: 219MI00
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 00

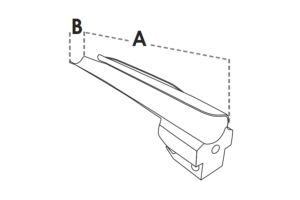

Dimension ‘A’ 69 mm, Dimension ‘B’ 11.32 mm

Product Code: 219MI0
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 0
Dimension ‘A’ 79 mm, Dimension ‘B’ 11.4 mm

Product Code: 219MI1
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 1
Dimension ‘A’ 104 mm, Dimension ‘B’ 11.8 mm

Product Code: 219MI2
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 2
Dimension ‘A’ 155 mm, Dimension ‘B’ 14.3 mm

Product Code: 219MI3
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 3
Dimension ‘A’ 197 mm, Dimension ‘B’ 14.3 mm

Product Code: 219MI4
Stellar Series™ Fibre-Optic Laryngoscope Blade, Miller Profile, Size 4
Dimension ‘A’ 204mm, Dimension ‘B’ 17.4mm
