Stellar Series™ Laryngoscope Blades (Macintosh Profile) Size 1

Easy To Use Blades Designed For Efficiency

The Stellar Series™ fibre-optic laryngoscope blades feature a low shoulder profile for better visualization and easier intubation of patients. The large (4.2mm) integrated fibre-optic bundle maximizes light transmission reducing crevices and hard-to-clean areas for better removal of bioburden. The matte finish reduces blade-glare and increases ease of use.

Macintosh Profile Blades

The most used laryngoscope blade, the Stellar Series Macintosh blades are available in multiple sizes. These curved laryngoscope blades feature a matte finish for reduced glare. Their large fibre-optic bundle (4.2mm) provides abundant light for improved visibility.

Stellar Series™ Laryngoscope Blades Benefits:

  • Low shoulder profile for better visualization and easier intubation of patients
  • Integrated fiber optic bundle to reduce crevices and hard-to-clean areas for better removal of bioburden
  • No disassembly required for reprocessing
  • Matte finish reduces glare
  • Large 4.2mm fiber-optic bundle maximizes light transmission
  • Glass-fiber bundle is designed for 1000’s of reprocessing cycles
  • SS 304 stainless steel construction
  • Conforms to ISO 7376-3 standard (“green” standard)
  • 5 year warranty

Product Code: 219MA1
Stellar Series™ Fibre-Optic Laryngoscope Blade, Macintosh Profile, Size 1

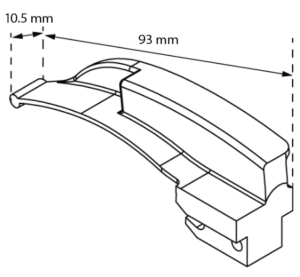

Dimension ‘A’ 93mm
Dimension ‘B’ 10.5mm
